Product Description:

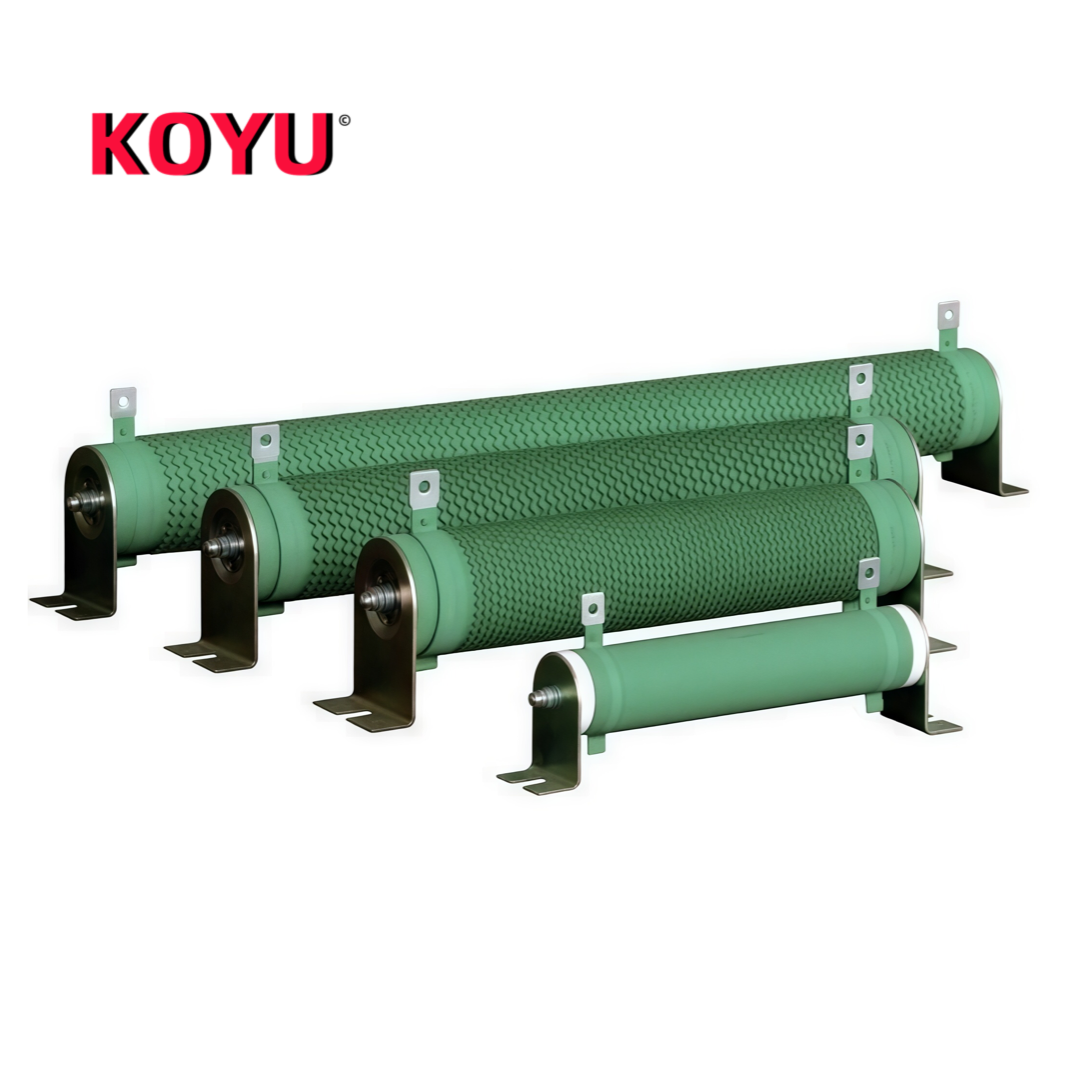

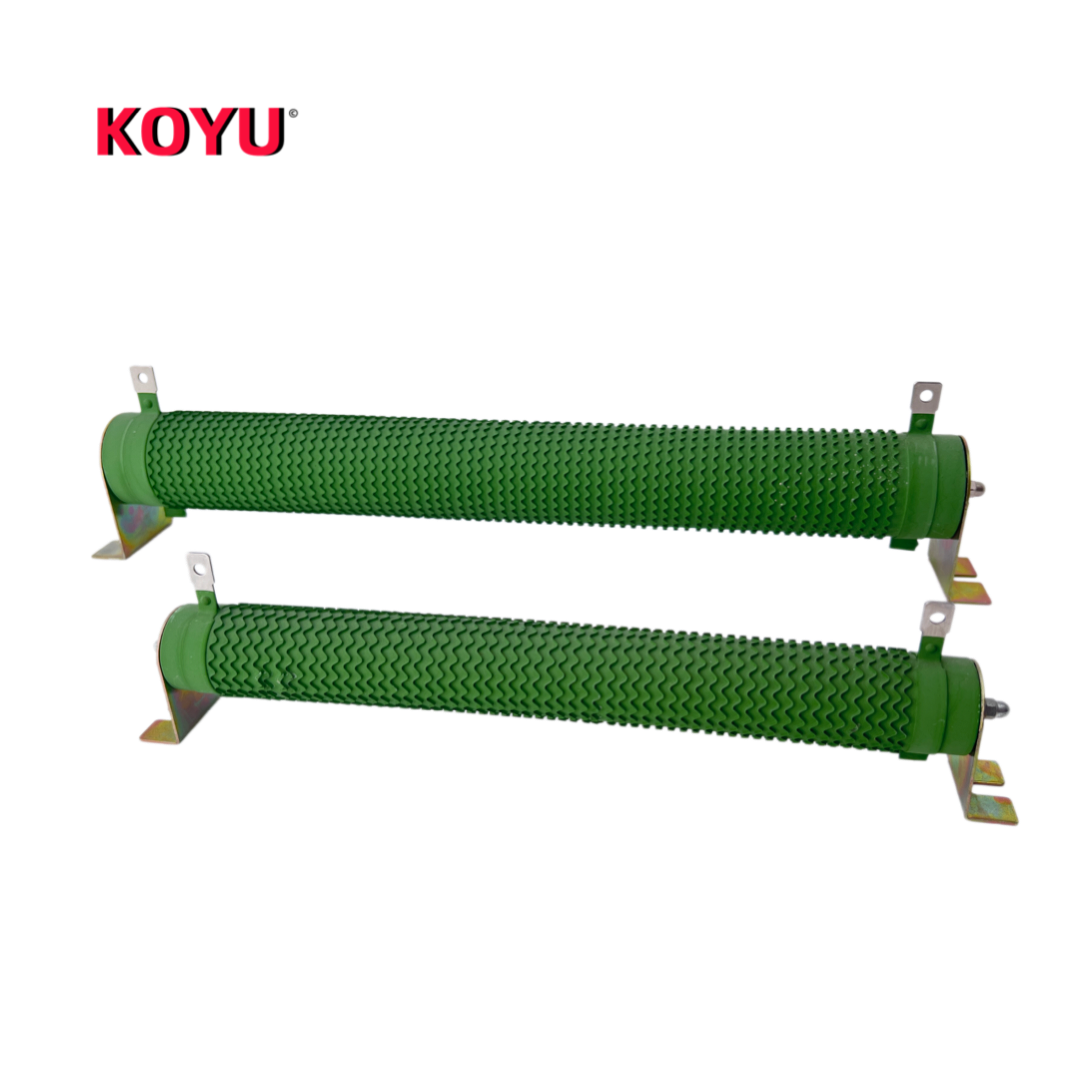

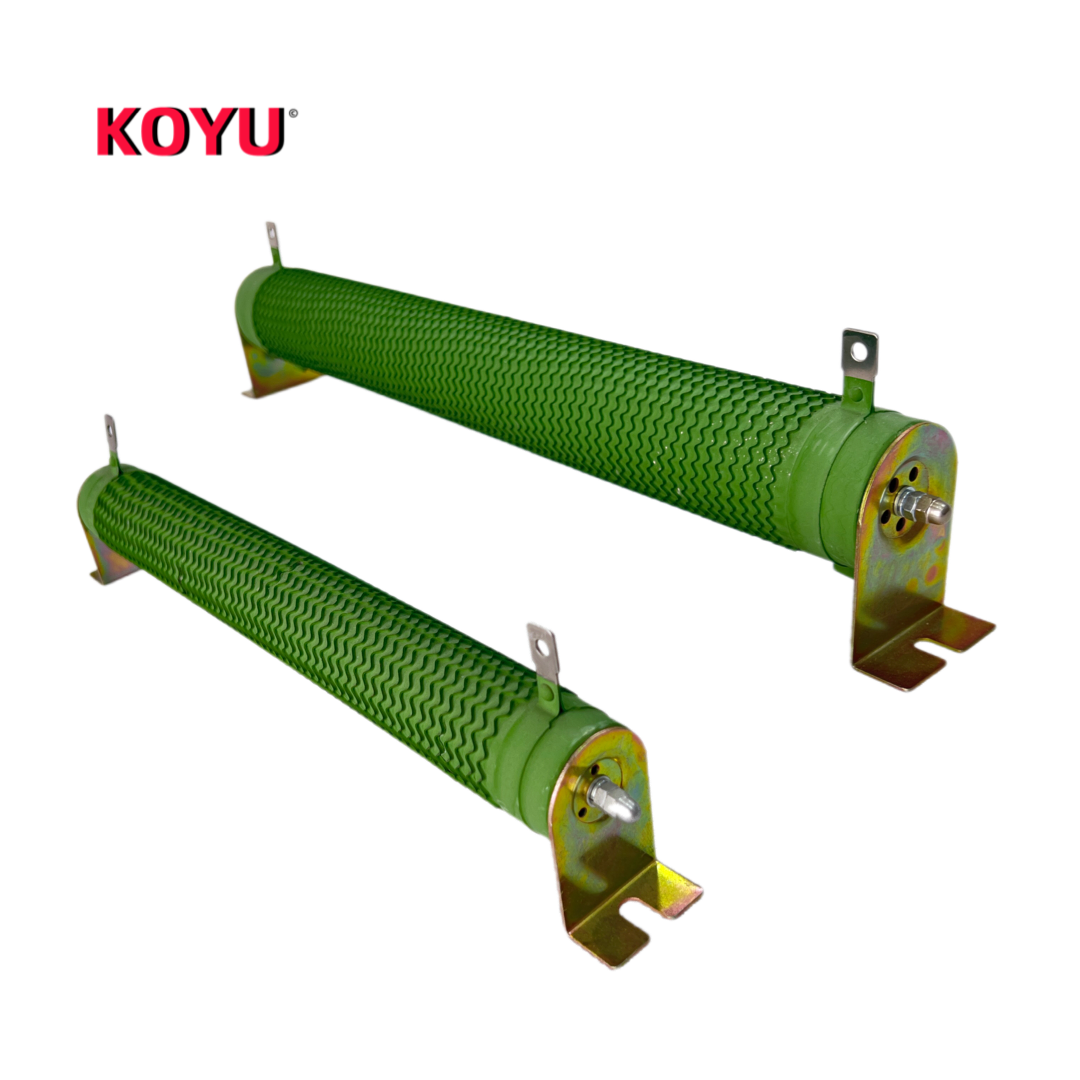

Corrugated Resistor is a high-performance resistor utilizing a ceramic tube as its framework, with uniformly wound corrugated alloy resistance wire and coated with high-temperature resistant insulation. It is designed for applications in frequency converters, servo systems, power supplies, and other electronic circuits, ensuring stable and reliable performance to meet various high-power load and pulse requirements.
Product Features:
1. High power load, excellent pulse characteristics, good heat dissipation.
2. Flexible installation methods, excellent insulation properties.
3. Suitable temperature range from extreme cold of -55°C to high temperatures of 270°C.
4. High-precision product selection: ±1%, ±2%, ±5%, ±10%.
产品描述：
波纹电阻器是一种高性能电阻器，采用陶瓷管作为骨架，波纹状合金电阻丝均匀绕制在骨架上，并涂有耐高温绝缘涂料。它设计用于变频器制动、伺服系统、电源等电气回路中，以稳定可靠的性能满足各种高功率负荷和脉冲特性的需求。
产品特点：
1 . 高功率负荷 ，脉冲特性好 ，散热特性好
2 . 安装方式灵活 ，绝缘性良好
3. 适用温度范围从极寒的-55℃到高温的270℃
4. 高精度的产品选择±1%、±2%、±5%、±10%
